DLC902401021
€114.20
(D): 2.4
(L1): 30
(L): 75
(Ds): 3
Tip Angle: 135°
- Series Specifications
- Description
- Cutting Conditions
- Additional information
- Drill Guide
Series Specifications
| Product No. | D | L1 | L | Ds |
|---|---|---|---|---|
| DLC301200311 | 1.20 | 8 | 50 | 3 |
| DLC301300311 | 1.30 | 8 | 50 | 3 |
| DLC301400311 | 1.40 | 8 | 50 | 3 |
| DLC301500311 | 1.50 | 10 | 50 | 3 |
| DLC301600311 | 1.60 | 10 | 50 | 3 |
| DLC301700311 | 1.70 | 10 | 50 | 3 |
| DLC301800311 | 1.80 | 12 | 50 | 3 |
| DLC301900311 | 1.90 | 12 | 50 | 3 |
| DLC302000311 | 2.00 | 12 | 50 | 3 |
| DLC302100311 | 2.10 | 12 | 50 | 3 |
| DLC302200311 | 2.20 | 12 | 50 | 3 |
| DLC302300311 | 2.30 | 14 | 50 | 3 |
| DLC302400311 | 2.40 | 14 | 50 | 3 |
| DLC302500311 | 2.50 | 16 | 50 | 3 |
| DLC302600311 | 2.60 | 16 | 50 | 3 |
| DLC302700311 | 2.70 | 16 | 50 | 3 |
| DLC302800311 | 2.80 | 16 | 50 | 3 |
| DLC302900311 | 2.90 | 16 | 50 | 3 |
| DLC303000311 | 3.00 | 16 | 50 | 3 |
| DLC501200511 | 1.20 | 10 | 50 | 3 |
| DLC501300511 | 1.30 | 10 | 50 | 3 |
| DLC501400511 | 1.40 | 10 | 50 | 3 |
| DLC501500511 | 1.50 | 12 | 50 | 3 |
| DLC501600511 | 1.60 | 12 | 50 | 3 |
| DLC501700511 | 1.70 | 12 | 50 | 3 |
| DLC501800511 | 1.80 | 14 | 50 | 3 |
| DLC501900511 | 1.90 | 14 | 50 | 3 |
| DLC502000511 | 2.00 | 14 | 50 | 3 |
| DLC502100511 | 2.10 | 16 | 50 | 3 |
| DLC502200511 | 2.20 | 16 | 50 | 3 |
| DLC502300511 | 2.30 | 18 | 50 | 3 |
| DLC502400511 | 2.40 | 18 | 50 | 3 |
| DLC502500511 | 2.50 | 20 | 60 | 3 |
| DLC502600511 | 2.60 | 20 | 60 | 3 |
| DLC502700511 | 2.70 | 20 | 60 | 3 |
| DLC502800511 | 2.80 | 20 | 60 | 3 |
| DLC502900511 | 2.90 | 22 | 60 | 3 |
| DLC503000511 | 3.00 | 22 | 60 | 3 |
| DLC901201021 | 1.20 | 16 | 60 | 3 |
| DLC901301021 | 1.30 | 16 | 60 | 3 |
| DLC901401021 | 1.40 | 18 | 60 | 3 |
| DLC901501021 | 1.50 | 18 | 60 | 3 |
| DLC901601021 | 1.60 | 22 | 60 | 3 |
| DLC901701021 | 1.70 | 22 | 60 | 3 |
| DLC901801021 | 1.80 | 24 | 60 | 3 |
| DLC901901021 | 1.90 | 24 | 60 | 3 |
| DLC902001021 | 2.00 | 26 | 60 | 3 |
| DLC902101021 | 2.10 | 26 | 60 | 3 |
| DLC902201021 | 2.20 | 30 | 75 | 3 |
| DLC902301021 | 2.30 | 30 | 75 | 3 |
| DLC902401021 | 2.40 | 30 | 75 | 3 |
| DLC902501021 | 2.50 | 34 | 75 | 3 |
| DLC902601021 | 2.60 | 34 | 75 | 3 |
| DLC902701021 | 2.70 | 34 | 75 | 3 |
| DLC902801021 | 2.80 | 36 | 75 | 3 |
| DLC902901021 | 2.90 | 36 | 75 | 3 |
| DLC903001021 | 3.00 | 36 | 75 | 3 |
| DLC901202021 | 1.20 | 30 | 75 | 3 |
| DLC901302021 | 1.30 | 32 | 75 | 3 |
| DLC901402021 | 1.40 | 34 | 75 | 3 |
| DLC901502021 | 1.50 | 36 | 75 | 3 |
| DLC901602021 | 1.60 | 36 | 75 | 3 |
| DLC901702021 | 1.70 | 40 | 75 | 3 |
| DLC901802021 | 1.80 | 40 | 75 | 3 |
| DLC901902021 | 1.90 | 44 | 79 | 3 |
| DLC902002021 | 2.00 | 44 | 79 | 3 |
| DLC902102021 | 2.10 | 50 | 100 | 3 |
| DLC902202021 | 2.20 | 50 | 100 | 3 |
| DLC902302021 | 2.30 | 54 | 100 | 3 |
| DLC902402021 | 2.40 | 54 | 100 | 3 |
| DLC902502021 | 2.50 | 58 | 100 | 3 |
| DLC902602021 | 2.60 | 58 | 100 | 3 |
| DLC902702021 | 2.70 | 62 | 100 | 3 |
| DLC902802021 | 2.80 | 62 | 100 | 3 |
| DLC902902021 | 2.90 | 66 | 100 | 3 |
| DLC903002021 | 3.00 | 66 | 100 | 3 |
Description
Description

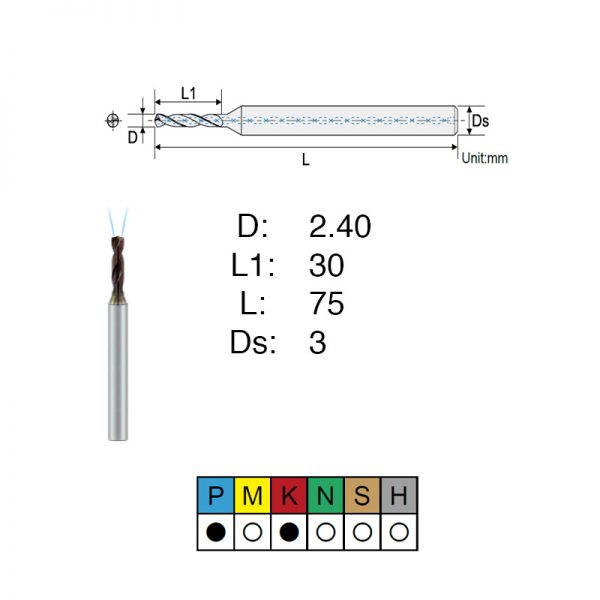

DLC902401021 – DLC – Internal Coolant ∙ 3D~20D
D: 2.4
L1: 30
L: 75
Ds: 3
Angle: 135°
．3~5×D Cutting depth ．Reinforced Shank ．140° Tip Angle ．Internal Coolant
．UNIX Coating ．Tolerance h8 ．NX Design
．For Alloy Steel, Stainless Steel, Cast Iron and High Temperature Alloy.
Cutting Conditions
Additional information
Additional information
| (HM) Material | |
|---|---|
| (HM) D | |
| (HM) L1 | |
| (HM) L | |
| (HM) Ds | |
| (HM) Tip Angle |
