DPC903002001
€126.50
(D): 3
(L1): 70
(L): 110
(Ds): 4
- Series Specifications
- Description
- Cutting Conditions
- Additional information
- Drill Guide
Series Specifications
| Product No. | D | L1 | L | Ds |
|---|---|---|---|---|
| DPC903002001 | 3.00 | 70 | 110 | 4 |
| DPC903502001 | 3.50 | 83 | 123 | 4 |
| DPC904002001 | 4.00 | 96 | 136 | 4 |
| DPC904502001 | 4.50 | 118 | 158 | 6 |
| DPC905002001 | 5.00 | 118 | 158 | 6 |
| DPC905502001 | 5.50 | 140 | 180 | 6 |
| DPC906002001 | 6.00 | 140 | 180 | 6 |
| DPC906502001 | 6.50 | 162 | 202 | 8 |
| DPC907002001 | 7.00 | 162 | 202 | 8 |
| DPC907502001 | 7.50 | 183 | 223 | 8 |
| DPC908002001 | 8.00 | 183 | 223 | 8 |
| DPC908502001 | 8.50 | 205 | 249 | 10 |
| DPC909002001 | 9.00 | 205 | 249 | 10 |
| DPC909502001 | 9.50 | 227 | 271 | 10 |
| DPC910002001 | 10.00 | 227 | 271 | 10 |
Description
Description

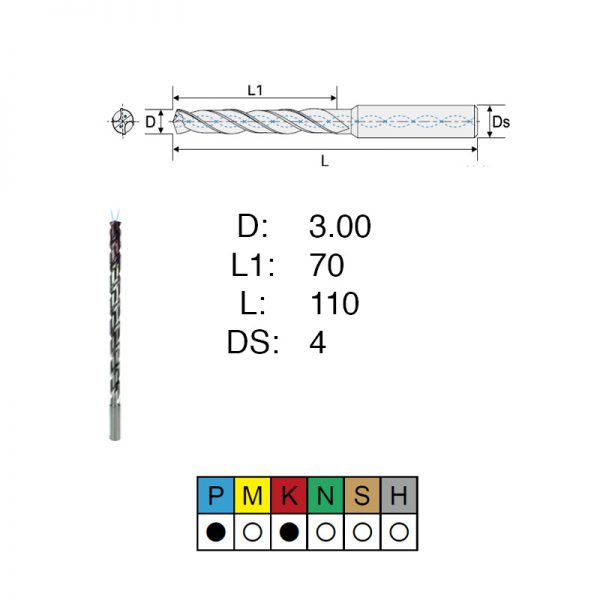

DPC903002001 – DPC – Internal Coolant ∙ 20D
D: 3
L1: 70
L: 110
Ds: 4
．20×D Cutting depth ．Reinforced Shank ．135° Tip Angle ．Internal Coolant
．UNIX Coating ．Tolerance h8 ．Double Margins Design ．SX Design
