DZN06800301
€78.00
(D): 6.8
(L1): 24
(L2): 48
(L): 90
(Ds): 10
- Series Specifications
- Description
- Cutting Conditions
- Additional information
- Drill Guide
Series Specifications
| Product No. | D | L1 | L2 | L | Ds |
|---|---|---|---|---|---|
| DZN03300301 | 3.30 | 12 | 26 | 62 | 6 |
| DZN04200301 | 4.20 | 15 | 28 | 66 | 6 |
| DZN05000301 | 5.00 | 18 | 36 | 79 | 8 |
| DZN06800301 | 6.80 | 24 | 48 | 90 | 10 |
| DZN08500301 | 8.50 | 30 | 55 | 102 | 12 |
Description
Description

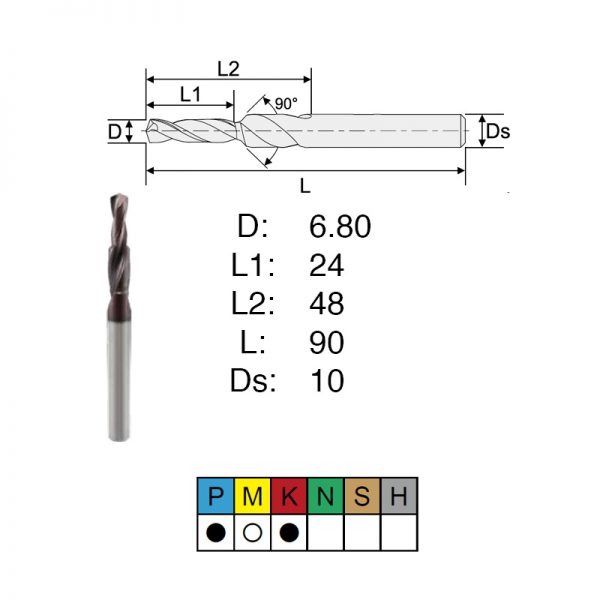

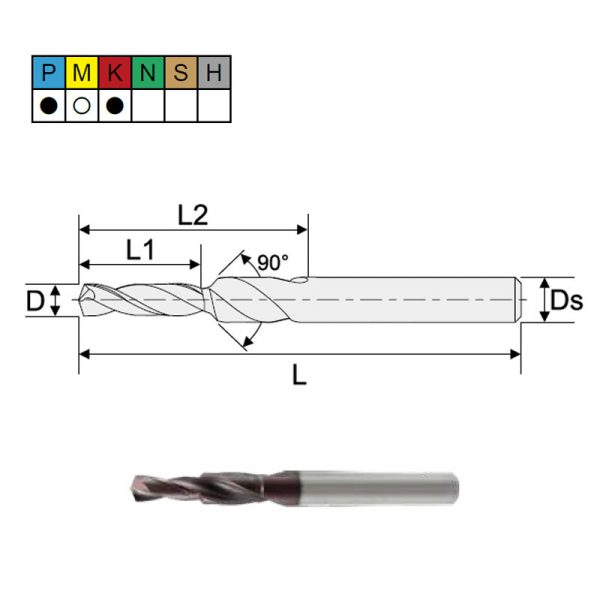

DZN06800301 – DZN – External Coolant ∙ 3D
D: 6.8
L1: 24
L: 90
L2: 48
Ds: 10
．Reinforced Shank ．External Coolant ．UNIX Coating ．Tolerance h8
．For drill with a counterbore, countersink, or chamfer. ．Customizable

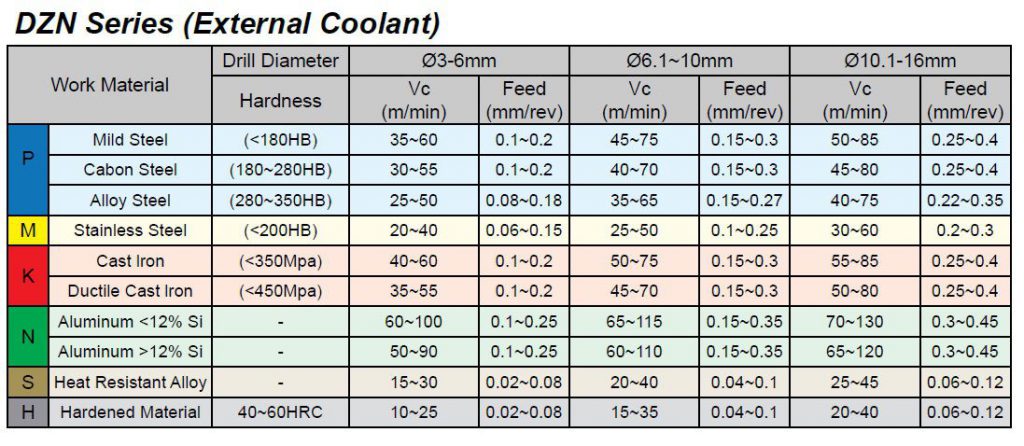

Cutting Conditions
Additional information
Drill Guide
