EHCWH412010S
€53.00
(R): 1.0R
(d): 12
(L1): 12
(D): 6.5
(M): M6
(F): 4
- Series Specifications
- Description
- Cutting Conditions
- Additional information
- Installation Guide
Series Specifications
| Product No. | Diameter (d) |
Radius (R) |
CL (L1) |
ND (D) |
M (M) |
Flutes (F) |
|---|---|---|---|---|---|---|
| EHCWH410005S | 10 | 0.5R | 10 | 6.5 | M6 | 4 |
| EHCWH410010S | 10 | 1.0R | 10 | 6.5 | M6 | 4 |
| EHCWH412005S | 12 | 0.5R | 12 | 6.5 | M6 | 4 |
| EHCWH412010S | 12 | 1.0R | 12 | 6.5 | M6 | 4 |
| EHCWH412020S | 12 | 2.0R | 12 | 6.5 | M6 | 4 |
| EHCWH412030S | 12 | 3.0R | 12 | 6.5 | M6 | 4 |
| EHCWH416010S | 16 | 1.0R | 16 | 8.5 | M8 | 4 |
| EHCWH416020S | 16 | 2.0R | 16 | 8.5 | M8 | 4 |
| EHCWH416030S | 16 | 3.0R | 16 | 8.5 | M8 | 4 |
| EHCWH420010S | 20 | 1.0R | 20 | 10.5 | M10 | 4 |
| EHCWH420020S | 20 | 2.0R | 20 | 10.5 | M10 | 4 |
| EHCWH420030S | 20 | 3.0R | 20 | 10.5 | M10 | 4 |
Description
Description

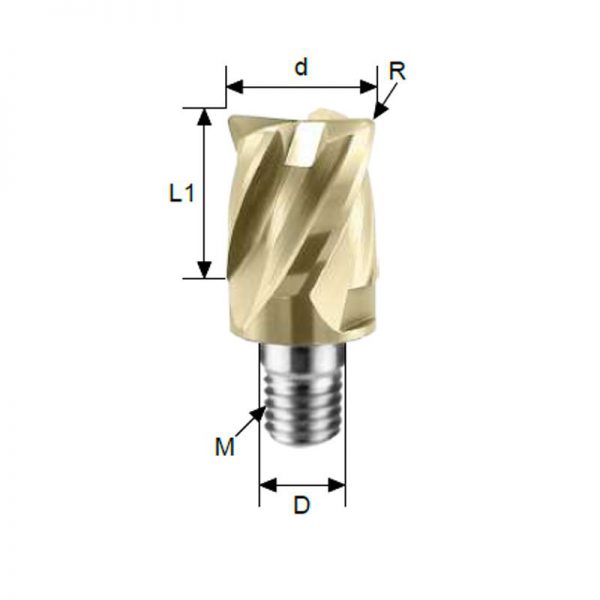

EHCWH412010S – Solid Carbide Milling Head
EHCWH – Corner Radius Type
Radius (R): 1.0R
Diameter (d): 12
CL (L1): 12
ND (D): 6.5
M (M): M6
Flutes (F): 4
Cutting Conditions
Additional information
Additional information
| (ModT) Material | |
|---|---|
| (ModT) Diam d | |
| (ModT) L1 | |
| (ModT) ND D | |
| (ModT) M | |
| (ModT) Flutes | |
| (ModT) Radius |
Installation Guide
