ESSSU416000A
€105.40
d: 16
L1: 35
L: 100
D: 16
Chamfer: 0.2
F: 4
- Series Specifications
- Description
- Material Chart
- Additional information
Series Specifications
| Product No. | Diameter (d) |
CL (L1) |
OAL (L) |
Shank (D) |
Chamfer | Flutes (F) |
|---|---|---|---|---|---|---|
| ESSSU403000A | 3 | 8 | 50 | 6 | 0.10 | 4 |
| ESSSU404000A | 4 | 10 | 50 | 6 | 0.10 | 4 |
| ESSSU405000A | 5 | 13 | 50 | 6 | 0.15 | 4 |
| ESSSU406000A | 6 | 15 | 50 | 6 | 0.15 | 4 |
| ESSSU408000A | 8 | 20 | 60 | 8 | 0.15 | 4 |
| ESSSU410000A | 10 | 25 | 75 | 10 | 0.20 | 4 |
| ESSSU412000A | 12 | 30 | 75 | 12 | 0.20 | 4 |
| ESSSU416000A | 16 | 35 | 100 | 16 | 0.20 | 4 |
Description
Description

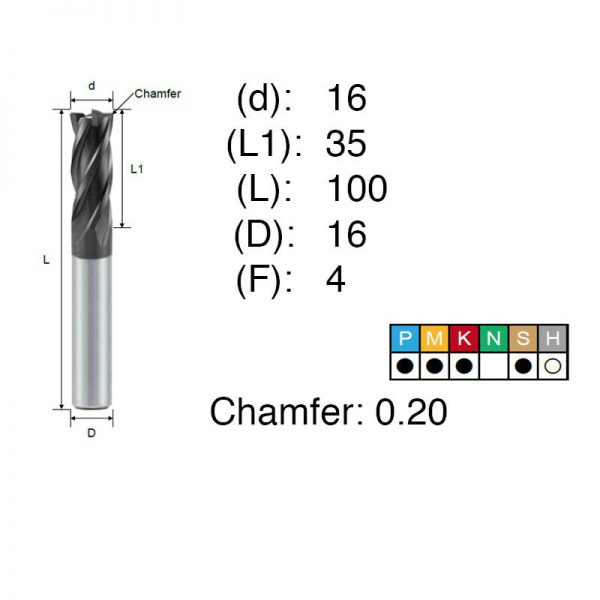

ESSSU416000A – Solid Carbide Endmill
High Feed ∙ Square ∙ 4F
Diameter (d): 16
CL (L1): 35
OAL (L): 100
Shank (D): 16
Chamfer: 0.2
Flutes (F): 4
ARCO coating provides a superior wear resistance.
Honing & chamfering at the cutting edge geometries for high feed milling.
Outstanding results for HRC 30 to HRC 55 steel, such as Alloy steel,cast Iron …etc.
Achieve long tool life, perfect surfaces and considerable reduction of machining time.
Material Chart
| Material Group | Description | Content | Tensile Strength (MPa)* | Hardness (HB) | Hardness (HRC) | DIN Standards |
|---|---|---|---|---|---|---|
| P1 | Low-Carbon Steels | C < 0.25% | < 530 | < 125 | - | C15, Ck22, ST37-2, S235JR, 9SMnPb28, GS38 |
| P2 | Medium-Carbon Steels, High-Carbon Steels | C > 0.25% | < 530 | < 220 | < 25 | ST52, S355JR, C35, GS60, Cf53 |
| P3 | Alloy Steels, Tool Steels | C > 0.25% | 600 ~ 850 | < 330 | < 35 | 16MnCr5, Ck45, 21CrMoV5-7, 38SMn28 |
| P4 | Alloy Steels, Tool Steels | C > 0.25% | 800 ~ 1000 | 350 ~ 450 | 35 ~ 48 | 100Cr6, 105MnCr4, 51CrMnV4, 105WCr6, 100Cr2 |
| P5 | Ferritic, Martensitic, PH Stainless Steels | C = 0~0.4% | 600 ~ 850 | < 330 | < 35 | X6Cr13, X10Cr13, X20Cr13, X12CrMoS17, X20CrMo13 |
| P6 | Austenitic Stainless Steel | C = 0.1~0.6% | 900 ~ 1350 | 350 ~ 450 | 35 ~ 48 | X40CrMoV51, H1, X155CrVMo121, S6-5-2-5, X45Cr13, X120Mn12 |
| M1 | Austenitic Stainless Steel | C = 0.05~0.15% | < 650 | 130 ~ 200 | - | X5CrNi1810, GX6CrNiMo1810, X6CrNiMoTi17122, X8CrNiMoAl1572 |
| M2 | High-Strength Austenitic Stainless and Cast Stainless Steels | C = 0.05~0.15% | 500 ~ 700 | 150 ~ 230 | < 25 | X2CrNiMo134, X10CrNi189, X5CrNiCuNb1744 |
| M3 | Duplex Stainless Steel | C = 0.05~0.2% | < 900 | 135 ~ 275 | < 30 | X2CrNiMoN2315, X20CrNiSi254, GX40CrNiSi274, X2CrNiMoN2253 |
| K1 | Grey Cast Iron | - | 150 ~ 400 | 120 ~ 290 | < 32 | GG10, GG15, GG20, GG25, GG40 |
| K2 | Low- and Medium-Strength Ductile Irons and Compacted Graphite Irons (CGI) | - | 400 ~ 600 | 130 ~ 260 | < 28 | GGG35.3, GGG40.3, GGG70 |
| K3 | High-Strength Ductile Irons and Austempered Ductile Iron (ADI) | - | 600 ~ 900 | 180 ~ 350 | < 43 | GTW-35-04, GTW-65, GTS-35-10, GTS-45-06 |
| N1 | Wrought Aluminium | - | < 520 | 60 ~ 90 | < 43 | AIMg1, AI99.5, AICuMg1, AICuBiPb, AIMgSi1, ALMgSiPb |
| N2 | Low-Silicon Aluminium Alloys | Si < 12.2% | < 350 | 70 ~ 120 | < 43 | GAISiCu4, GDAISi10Mg |
| N3 | High-Silicon Aluminium Alloys | Si < 12.2% | 200 ~ 320 | 60 ~ 120 | < 43 | G-ALSi12, G-AlSi17Cu4, G-AISi21CuNiMg |
| N4 | Copper and Copper Alloys | - | 200 ~ 650 | 60 ~ 200 | < 43 | CuZn40, Ms60, G-CuSn5ZnPb, CuZn37, CuSi3Mn |
| N5 | Nylon, Plastics | - | - | - | < 43 | Lexan, Hostalen, Polystyrol, Makrolon |
| N6 | Carbon, Graphite Composites, CFRP | - | 600 ~ 1500 | - | < 43 | CFRP, CFK, GFK |
| S1 | Iron-Based, Heat-Resistant Alloys | - | 500 ~ 1200 | 160 ~ 260 | 25 ~ 48 | X1NiCrMoCu32287, X12NiCrSi3616, X5NiCrAITi3120,X40CoCrNi20 20 |
| S2 | Cobalt-Based, Heat-Resistant Alloys | - | 1000 ~ 1450 | 250 ~ 450 | 25 ~ 48 | Haynes 188, Stellite 6, 21, 31 |
| S3 | Nickel-Based, Heat-Resistant Alloys | - | 600 ~ 1700 | 160 ~ 450 | 33 ~ 48 | NiCr29Fe, NiCr22Mo9Nb, NiCr20Mo, NiCr19FeNbMo, NiCr16Fe7TiAl |
| S4 | Titanium and Titanium Alloys | - | - | 300 ~ 400 | 33 ~ 48 | Ti1, TiAI5Sn2, TiAI6V4, TiAI4Mo4Sn2 |
| H1 | Hardened Materials | - | - | < 460 | < 48 | GX260NiCr42, GX330NiCr42, GX300CrNiSi952, GX300CrMo153 |
| H2 | Hardened Materials | - | - | 460 ~ 560 | 48 ~ 55 | - |
| H3 | Hardened Materials | - | - | 560 ~ 650 | 56 ~ 60 | - |
| H4 | Hardened Materials | - | - | > 650 | > 60 | - |
