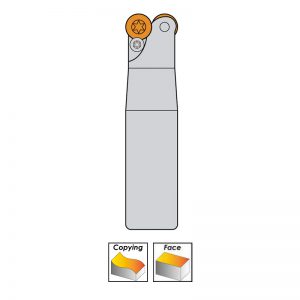

ICARPE802020150 - Image 1

ICARPE802020150

€88.60

D:20
L1:50
L:150
d:20
T:2

SKU: ICARPE802020150
CARPE-img1
Product No. D L1 L d T Inserts Screw Wrench
ICARPE802016150 16 50 150 16 2 RPMT08T2 ITS3004 ITK09
ICARPE802020150 20 50 150 20 2 RPMT08T2 ITS3004 ITK09
ICARPE803025150 25 40 150 25 3 RPMT08T2 ITS3004 ITK09
ICARPE102025150 25 40 150 25 2 RPMT10T3 ITS3503 ITK15
ICARPE103030150 30 40 150 25 3 RPMT10T3 ITS3503 ITK15
ICARPE103032150 32 40 150 32 3 RPMT10T3 ITS3503 ITK15
ICARPE202032170 32 45 170 32 2 RPMT1204 RPMW1204 ITS4006 ITK15
ICARPE302025150 25 50 150 25 2 RPMW1003 ITS4004 ITK15
ICARPE302025180 25 50 180 25 2 RPMW1003 ITS4004 ITK15
ICARPE302025200 25 50 200 25 2 RPMW1003 ITS4004 ITK15
ICARPE302025250 25 50 250 25 2 RPMW1003 ITS4004 ITK15
ICARPE302026150 26 30 150 25 2 RPMW1003 ITS4004 ITK15
ICARPE302030150 30 35 150 25 2 RPMW1003 ITS4004 ITK15
ICARPE302030200 30 35 200 25 2 RPMW1003 ITS4004 ITK15
ICARPE302030300 30 35 300 25 2 RPMW1003 ITS4004 ITK15
ICARPE303032120 32 55 125 32 3 RPMW1003 ITS4004 ITK15
ICARPE303035150 35 55 150 32 3 RPMW1003 ITS4004 ITK15
ICARPE303035250 35 55 250 32 3 RPMW1003 ITS4004 ITK15
ICARPE303035300 35 55 300 32 3 RPMW1003 ITS4004 ITK15

Description

CARP – corner radius

D:20
L1:50
L:150
d:20
T:2

Cutter Range: Ø16 ~ Ø32

Additional information

(MT) D

(MT) L1

(MT) L

(MT) dd

(MT) T
