ICF23F205080270
D:80
L1:23
L:50
d:27
T:5
- Series Specifications
- Description
- Cutting Conditions
- Additional information
Series Specifications
| Product No. | D | L1 | L | d | T | Inserts | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|
| ICF23F203050220 | 50 | 21 | 50 | 22 | 3 | WP26379R25 | ITS5002 | ITK20 |
| ICF23F204063220 | 63 | 21 | 50 | 22 | 4 | WP26379R25 | ITS5002 | ITK20 |
| ICF23F205080270 | 80 | 23 | 50 | 27 | 5 | WP26379R25 | ITS5002 | ITK20 |
| ICF23F206100320 | 100 | 26 | 50 | 32 | 6 | WP26379R25 | ITS5002 | ITK20 |
| ICF23F207125400 | 125 | 38 | 63 | 40 | 7 | WP26379R25 | ITS5002 | ITK20 |
| ICF23F208160400 | 160 | 38 | 63 | 40 | 8 | WP26379R25 | ITS5002 | ITK20 |
Description
Description
CF23 – high feed – 1 side – 3 cut edges
D:80
L1:23
L:50
d:27
T:5
Cutter Range: Ø50 ~ Ø160

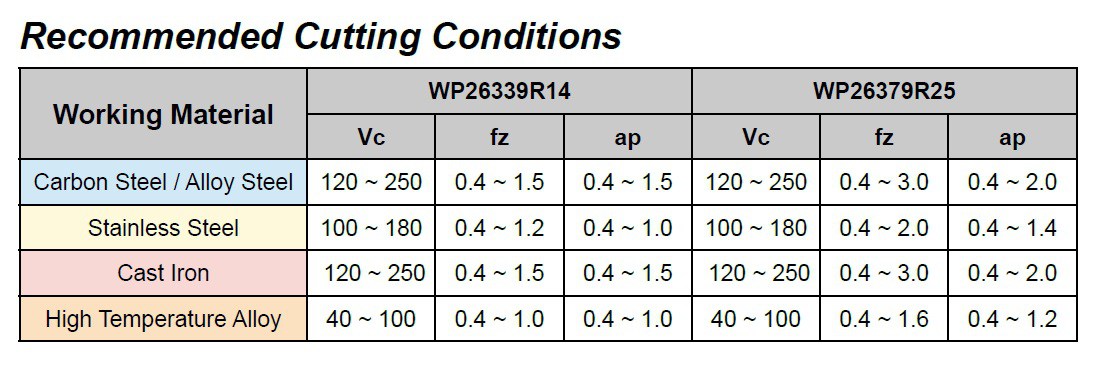

Cutting Conditions
