ICXLNM302017080
€102.90
D:17
L1:26
d:8.5
T:2
M:M8
- Series Specifications
- Description
- Cutting Conditions
- Additional information
Series Specifications
| Product No. | D | L1 | d | M | T | Coolant | Inserts | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|---|
| ICXLNM302017080 | 17 | 26 | 8.5 | M8 | 2 | LNMX0303 | ITS2535 | ITK07 | |
| ICXLNM303021100 | 21 | 32 | 10.5 | M10 | 3 | LNMX0303 | ITS2535 | ITK07 | |
| ICXLNM303021101 | 21 | 32 | 10.5 | M10 | 3 | ✓ | LNMX0303 | ITS2535 | ITK07 |
| ICXLNM304026120 | 26 | 38 | 12.5 | M12 | 4 | LNMX0303 | ITS2535 | ITK07 | |
| ICXLNM304032160 | 32 | 41 | 17 | M16 | 4 | LNMX0303 | ITS2535 | ITK07 |
Description
Description

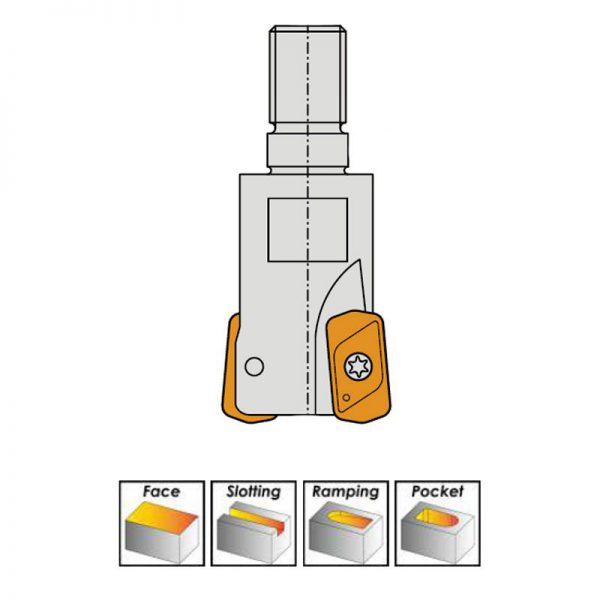

CXLN – high feed – 2 sides – 4 cut edges
D:17
L1:26
d:8.5
T:2
M:M8
Cutter Range: Ø17 ~ Ø32

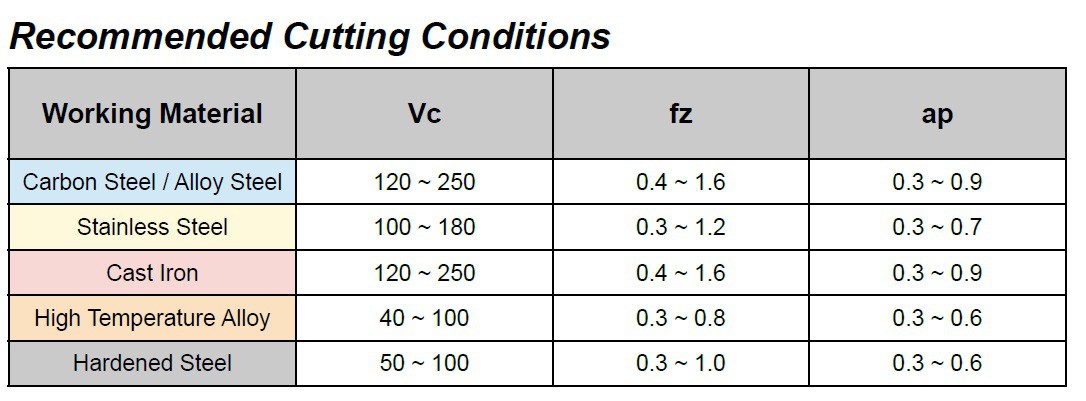

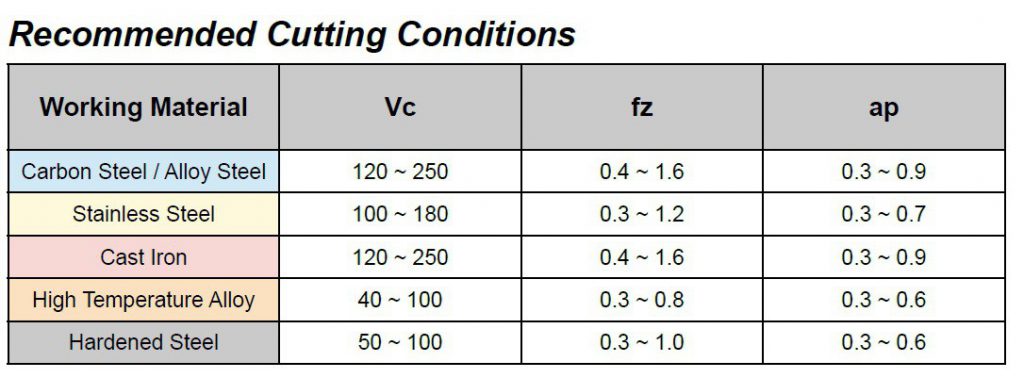

Cutting Conditions
