ICXLOM303021101
€150.70
D:21
L1:30
d:10.5
T:3
M:M10
Coolant Hole:✓
- Series Specifications
- Description
- Cutting Conditions
- Additional information
Series Specifications
| Product No. | D | L1 | d | M | T | Coolant | Inserts | Screw | Wrench |
|---|---|---|---|---|---|---|---|---|---|
| ICXLOM302017081 | 17 | 25 | 8.5 | M8 | 2 | ✓ | LOGX0303 | ITS3004 | ITK08 |
| ICXLOM303021101 | 21 | 30 | 10.5 | M10 | 3 | ✓ | LOGX0303 | ITS3004 | ITK08 |
| ICXLOM304026121 | 26 | 35 | 12.5 | M12 | 4 | ✓ | LOGX0303 | ITS3004 | ITK08 |
| ICXLOM304035161 | 35 | 40 | 17 | M16 | 4 | ✓ | LOGX0303 | ITS3004 | ITK08 |
| ICXLOM305035161 | 35 | 40 | 17 | M16 | 5 | ✓ | LOGX0303 | ITS3004 | ITK08 |
Description
Description

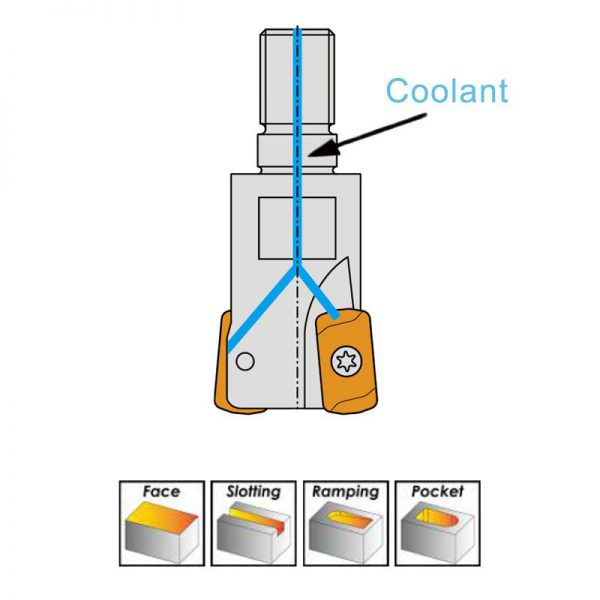

CXLO – high feed – 2 sides – 4 cut edges
D:21
L1:30
d:10.5
T:3
M:M10
Coolant Hole:✓
Cutter Range: Ø17 ~ Ø35

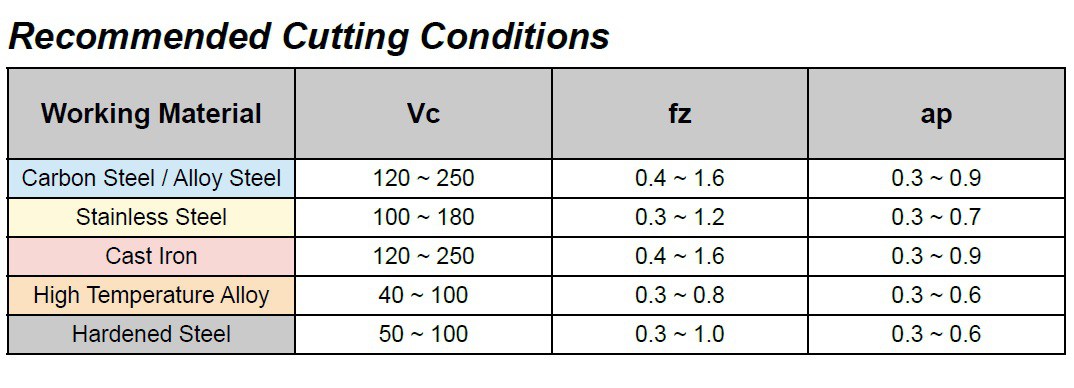

Cutting Conditions
