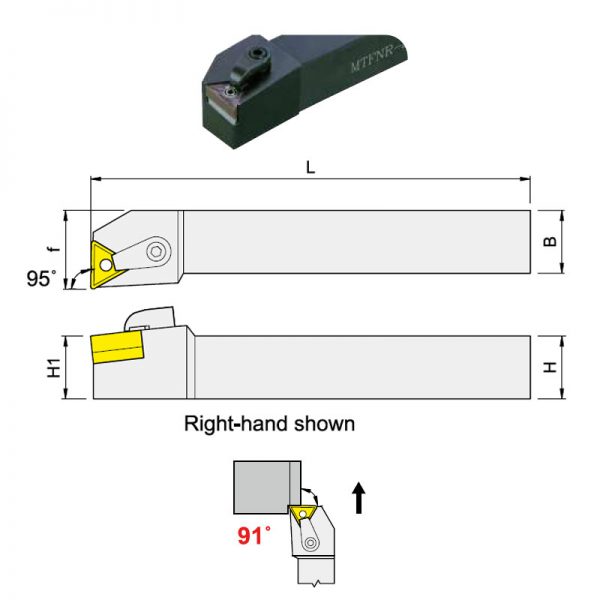

IMTFNR-2525M-16 - Image 1

IMTFNR-2525M-16

€58.60

H: 25
B: 25
L: 150
H1: 25
f: 32

SKU: IMTFNR-2525M-16 - Right

Description

IMTFNR-2525M-16 Tunring Holder

H: 25
B: 25
L: 150
H1: 25
f: 32

Insert: TN..1604..
Pin: IMLP34LA
Shim: ITMS322
Wrench 1: IPL20
Screw: IMS630TX
Clamp: IMC620
Wrench 2: IETL15



IMTFNR-2525M-16 Right

Additional information

(Turn) Position

(Turn) H

(Turn) B

(Turn) L

(Turn) H1

(Turn) f

(Turn) Insert

(Turn) Pin

(Turn) Shim

(Turn) Screw

(Turn) Wrench

(Turn) Clamp

(Turn) Wrench 2
